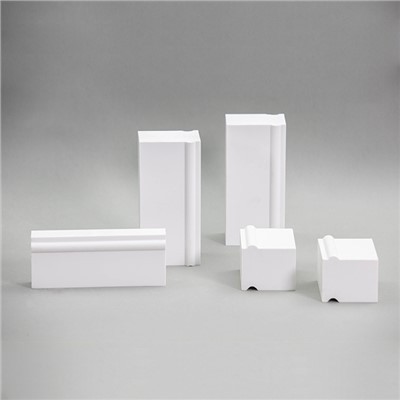

Ball Mill Alumina Bricks

Product Introduction:

Alumina ball mill brick is an anti-corrosion and wear-resistant material with high wear resistance, high corrosion resistance and effectively prolonging the service life of the equipment; the wear resistance of ceramics is 266 times that of special manganese and high chromium cast iron 171.5 times; hardness Much higher than wear-resistant steel and stainless steel.

Send Inquiry

Description

Technical Parameters

1. Technical Specifications

Name	Alumina lining brick
Alumina(%)	92
Bulk density(g/cm³)	＞3.63
Water absorption(%)	＜0.01
Hardness(Mohs)	9
Colour	White

2. General Size

Brick type	*Length width(mm)**	Thickness(mm)
Rectangular lining brick	120*45	40,50,60,70,80,90
Rectangular lining brick	150*50	40,50,60,70,80,90
Trapezoidal lining brick	120*40/45	40,50,60,70,80,90
Trapezoidal lining brick	150*45/50	40,50,60,70,80,90
Semi-rectangular lining brick	60*45	40,50,60,70,80,90
Semi-rectangular lining brick	75*50	40,50,60,70,80,90
Half trapezoidal lining brick	60*40/45	40,50,60,70,80,90
Half trapezoidal lining brick	75*45/50	40,50,60,70,80,90
Diamond lining brick	120*25	40,50,60,70,80,90
Diamond lining brick	150*25	40,50,60,70,80,90

3. Product Characteristics

The wear-resistant alumina lining brick is mainly used as the inner lining of the ball mill. The wear resistance and impact resistance strongly protect the ball mill and prolong the service life.

(1)Alumina content of 92%, high purity, will not pollute the grinding material.

(2)Good wear resistance, long service life.

(3)Fine grinding slurry.

(4)Corrosion resistance, high density, high mechanical strength.
